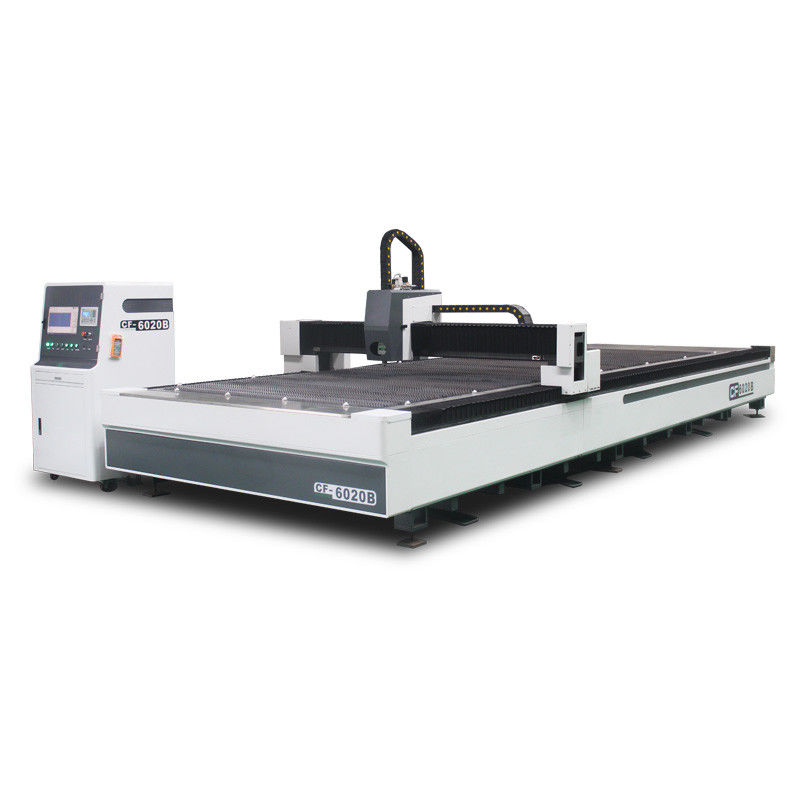

3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter

I'm Online Chat Now

3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter

3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter
3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter

Large Image :  3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter

Product Details:
Brand Name: Sintec Optronics
Model Number: STC027
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

3000W 6000W CNC Fiber Laser Cutting Machine 6020 Metal Laser Cutter

Description
Cooling System: Water Cooling Cutting Area: 1500x3000mm
Drive System: Stepper Motor Laser Power: 3000-6000W
Laser Source: Fiber Laser Power Supply: 380V/50Hz
Weight: 800KG Application: Cutting For Metal Sheet
Highlight:

3000W Fiber Laser Cutting Machine

,

6000W Laser Cutting Machine

,

Metal Laser Cutter Machine

3000w 6000w 6020 Metal Laser Cutter/ CNC Fiber Laser Cutting Machines

DESCRIPTION:



STC027 Super Quality Sheet Metal Laser Cutting Machine has equipped with a double exchange working table, size 2000x6000mm, which can protect the workers during cutting the very big metal sheet to get big size workpieces. The laser power is very high, reaching 10KW, so it can cut very thick metal sheets up to 30mm.
Because of the big working area, the laser cutter can work for the military and aerospace industry, cutting very big size metal sheets to make special unit parts for machinery.
The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of the C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
The fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption, and longest working lifespan, and the most important is highest accuracy and efficiency during processing the metal materials.


6000W Fiber laser cutting machines
Model STC027
Laser source Fiber laser
Laser Power 6000W
Laser Wavelength 1070nm
Max working area 6000x2000mm
Working table Single (double exchange tables optional)
Z axis movement 200mm
Positioning accuracy ±0.01mm
Repeating accuracy ±0.02mm
Max cutting speed 90m/min
Max cutting thickness 1-30mm according to materials
Cooling Water cooling
Laser Cutting Head Autofocus Raytools from Switzerland
Servo Motor & Driver YASKAWA From Japan
Reducer with Gear Shimpo from Japan
Rack Pinion Hiwin from Tanwan(World Brand)
Linear Guide rail Hiwin From Tanwan(world Brand)
Control System CyperCut8000 from Bochu China
Oil Lubricated Automatic lubricated
Gantry System Steel gantry
Pneumatic Control SMC from Japan
Gas controller Double
Machine Dimension 8000*1500*2500 mm
Weight 4200KG
Power Protection Level IP54
Voltage Three Phases 380V, 50HZ
