Product Details:
|
Cooling System: | Water Cooling | Laser Type: | Fiber Laser |
---|---|---|---|
Max Working Area: | 4000x2000mm/6000x2000mm | Power Protection Level: | IP54 |
Z Axis Movement: | 100mm | Max Cutting Speed: | 18m/min |
Max Cutting Thickness: | 1-20mm According To Materials | Voltage: | 380V/50Hz |
Application: | Cutting For Metal Sheet, Stainless Steel | ||
Highlight: | Laser Cutting Machine,CNC Laser Cutter,Laser Cutting Machine For Metal |

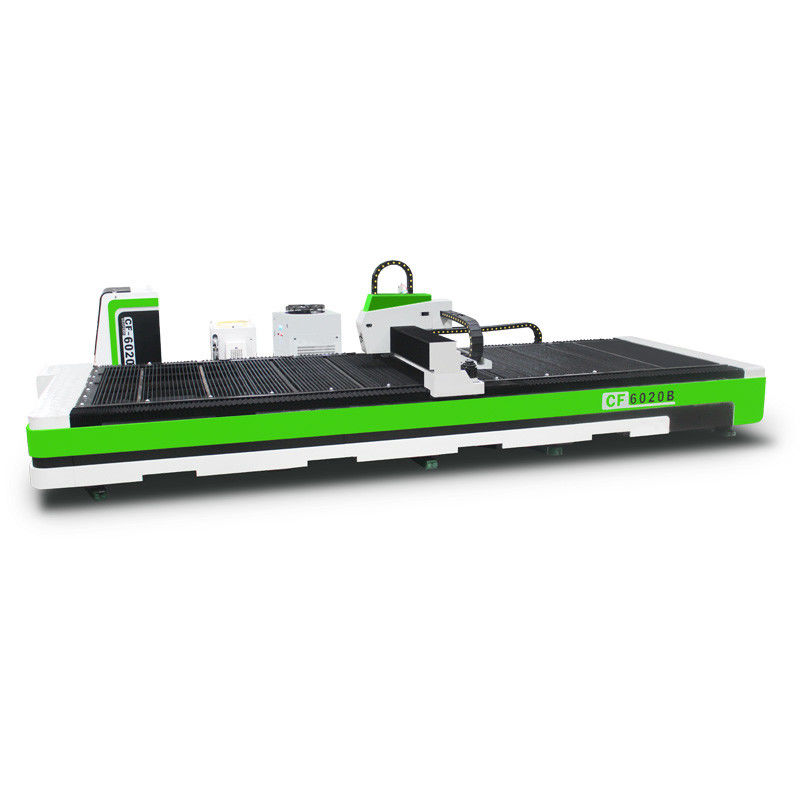

STC023 Fiber Laser Cutting Machine equipped with 6000W fiber laser source and double exchange table. It is very convenient to unload and load heavy metal sheets. The design of our equipment is advanced and reasonable, durable and reliable. The laser cutting type is classified into laser vaporization cutting, laser melting cutting, laser oxygen cutting, laser scribing, and fracture control four. All the key components have adopted international and domestic well-known brand products, making the system more integrated, more accurately controlling, and more stable running to satisfy cutting requirements of carbon steel, stainless steel, and various sheet metals. It is the ideal choice for thin sheet processing.
1KW/2KW/3KW/4KW/6KW/10KW Fiber laser cutting machines |
|
Model | STC023 1000/2000/3000-4020/6020 |
Laser source | Fiber laser |
Laser Power | 1KW/2KW/3KW/4KW/6KW/10KW |
Laser Wavelength | 1070nm |
Max working area | 4000x2000mm/6000x2000mm |
Working table | Single (double exchange tables optional) |
Z axis movement | 100mm |
Positioning accuracy | ±0.01mm |
Repeating accuracy | ±0.02mm |
Max cutting speed | 18m/min |
Max cutting thickness | 1-20mm according to materials |
Cooling | Water cooling |
Laser Cutting Head | Autofocus Raytools from Switzerland |
Servo Motor & Driver | YASKAWA From Japan |
Reducer with Gear | Shimpo from Japan |
Rack Pinion | Hiwin from Tanwan(World Brand) |
Linear Guide rail | Hiwin From Tanwan(world Brand) |
Control System | CyperCut8000 from Bochu China |
Oil Lubricated | Automatic lubricated |
Gantry System | Steel gantry |
Pneumatic Control | SMC from Japan |
Gas controller | Double |
Machine Dimension | 5620*2970*1850 mm/14400*3350*1890 mm |
Weight | 3500Kg/4200KG |
Power Protection Level | IP54 |
Voltage | Three Phases 380V, 50HZ |
Material / Laser Power | 500W | 750W | 1000W | 2000W | 3000W | 6000W |
Carbon Steel | 6mm | 8mm | 10mm | 16mm | 20mm | 30mm |
Stainless Steel | 3mm | 4mm | 6mm | 10mm | 12mm | 20mm |
Aluminum | 1mm | 3mm | 4mm | 6mm | 8mm | 15mm |
Brass | 1mm | 2mm | 4mm | 6mm | 8mm | 12mm |
Copper | 1mm | 2mm | 3mm | 4mm | 5mm | 8mm |
Galvanized Steel | 1mm | 2mm | 4mm | 6mm | 8mm | 6mm |
The laser cutting machine using cutting sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing, and other manufacturing and processing industries.
