Cards and Software, PMC2 card/ UMC4 card/ MM3D card

1) STEL-PMC2 card

• Support digital scanners by XY2-1 00 protocol.

• For analog scanners, signals converted by the DA2-1 6 daughter board.

• Built-in DSP, marking computing do not occupy computer CPU time.

• 1 0µs galvo-motor-position updating rate.

• FPK, PPK, R05 first pulse suppression.

• Two 1 2-bits analog control signals.

• Support 3-axis encoder inputs, can be used to detect the object position of fly-marking and XY table.

• PWM maximum output frequency is 1 0MHz, minimum pulse width is 0.1 µs.

• 4-axis pulse/direction digital control signals, the maximum output frequency is 2MHz.

• General purpose 1 6-bits digital outputs, 1 6-bits digital inputs.

• Specific 1 6-bits laser control digital outputs.

• Up to 4 cards installed simultaneously.

• Support for Windows XP/Vista/Windows7/Windows8.

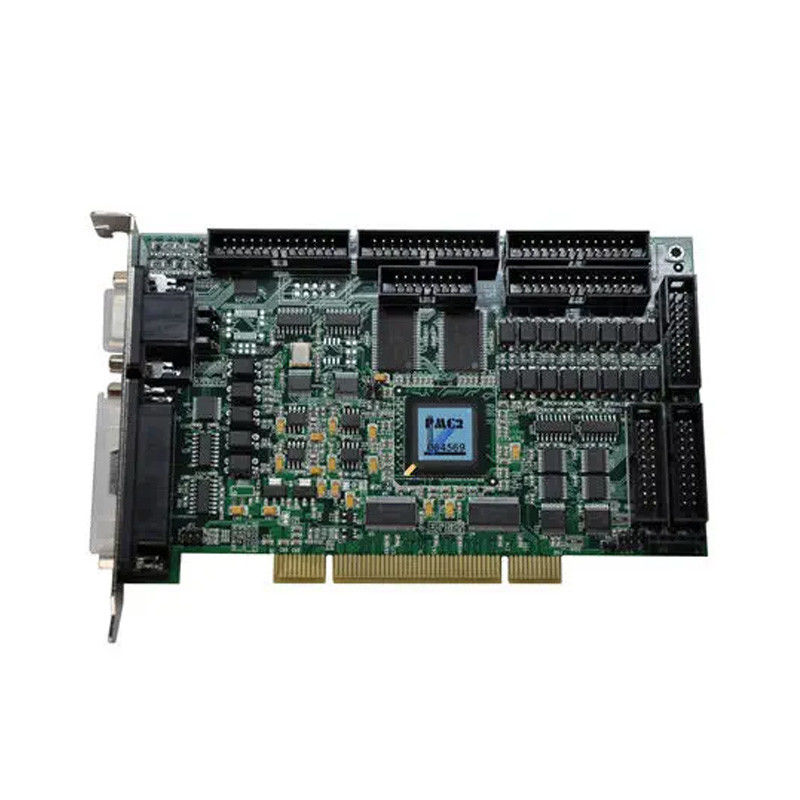

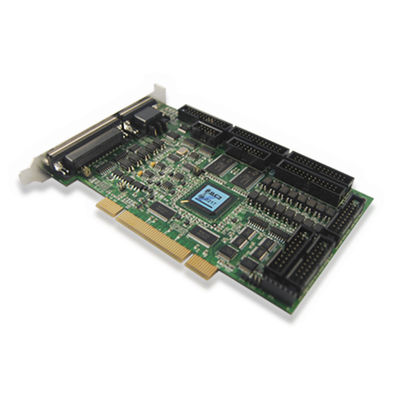

STEL-PMC2 is a PCI bus advanced laser marking card, support digital galvo motor, compatible with XY2-100 protocol, and through DA-1 6 daughter board can control analog galvo motor precisely.

2) LSRM-UMC4 card

• Built-in DSP, marking computing do not occupy computer CPU time.

• Support one XY2-100 digital control signal output, 10μs cycle update galvo motor position.

• FPK, PPK, R05 first pulse suppression.

• Two 12-bits analog control signals.

• PWM maximum output frequency is 10MHz, minimum pulse width is 0.1μs.

• Support offline marking, could access 16 files each contains 8 sets auto-text and 8 kinds of fonts.

• One RS232 Communication Port for PLC communication.

• Support one encoder input for mark-on-fly function.

• Support one pulse/direction digital control signal output, the maximum output frequency is 2MHz.

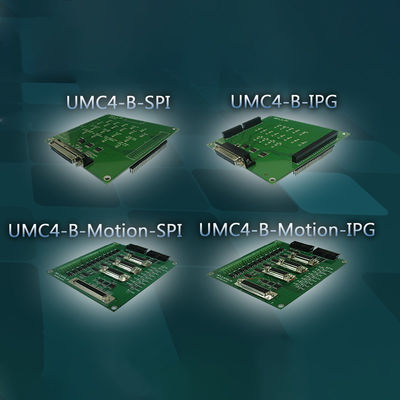

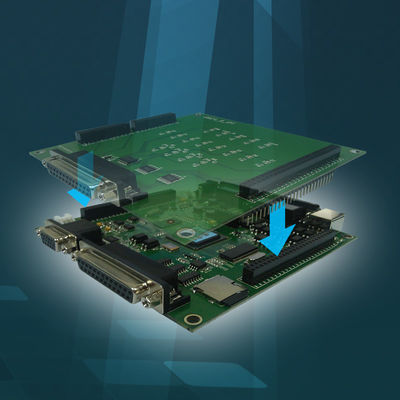

• Contain expansion connectors for connecting with a variety of daughter boards.

• Support for Windows XP/Vista/Windows7/Windows8.

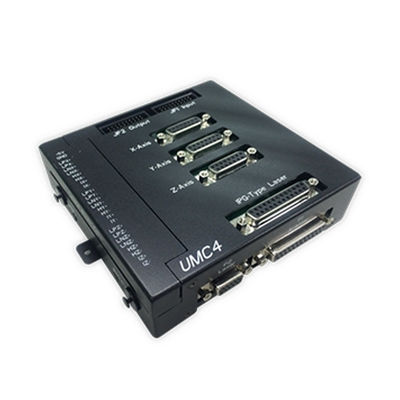

STEL-UMC4 is a USB bus advanced laser marking card, and support digital galvo motor, compatible with XY2-100 protocol. STEL-UMC4 built-in full offline marking functions could access up to 16 files.

3) STEL-MM3D card

• Support STL 3D model

• Draw in 2D graphic

• Built in several frequently used models

• Support import 3D DXF as marking path

• Graphic Coated or projection mapping to curved surface

• Real-time preview, what you see is what you get

• Automated process control

• Support X,Y,or Z axis motion

MM3D marking software has combined the third marking axis(focal shifter) control ability, which could help user marking on irregular curve surface. After user imports the 3D model in STL format, MM3D will paste the drew graphic on the model surface. At this time, user could put the working-piece on the proper marking position to complete marking task. Not only MM3D allowed user import 3D model in STL format, but built in several most frequently used curve surface; or user could import 3D DXF file as marking path.

4) STEL-MM software: MarkingMate

• Support many kinds of language such as Chinese, English, Japanese, Deutsch

• Support Win XP,Vista,Win7,Win8

• Provide Draw Menu: Vertex, Line, Arc, Circle, Text, Barcode

• A multiplicity of Auto Text: Serial No, Date, Keyboard, File

• Best compatibility, can import variety of image formats

• Provide Object-Related Property Table, has being selected, the Property

• Mark Parameter List shows all the marking parameters users set themselves.

• Control Object-Related Property: Digital In, Digital out, Stop, Delay Time, Motion, Reset & Homing.

• Support RS-232,TCP OP Parameters

• Layer-Related Property Table

• Matrix Property

• Compensation for all lens distortion

• Provide 3-user levels

• Users can set the deviation compensation between align light and laser

• Support many types of laser marking cards such as PMC2,MC3,RTC3,4,5

• Support many types of lasers, such as CO2,YAG,fiber,green,UV

STEL-MM MarkingMate is window-based laser marking software developed which is easy and friendly to use powerful tool. Support variety vector and bitmap graphic, and provide library and OCX component for marking solution provider. Easily to mark on plane or non-plane surface, also support variety PCI or USB marking controller, able to control almost all kinds of laser.
