3D Laser Marking Heads / Dynamic Focusing Scanners Customized

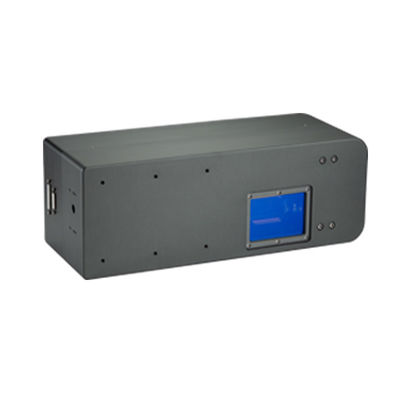

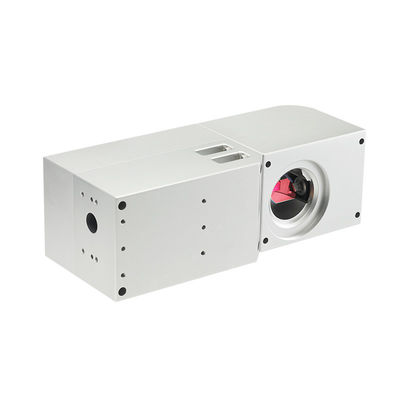

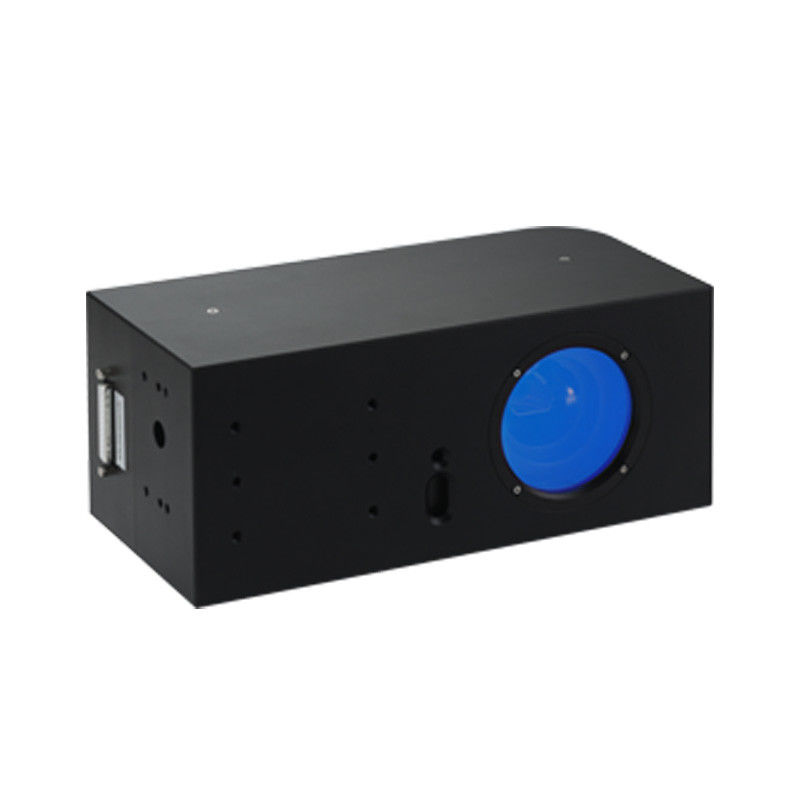

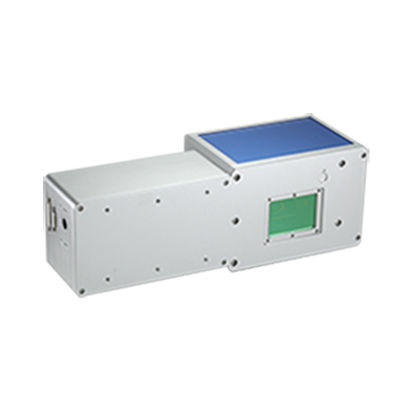

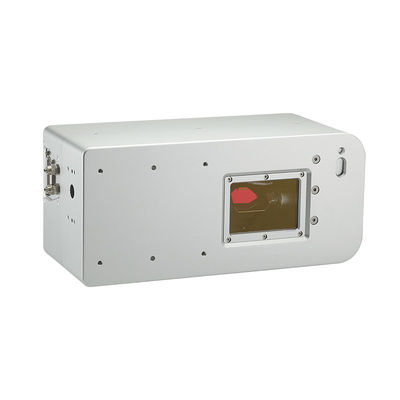

Large Image : 3D Laser Marking Heads / Dynamic Focusing Scanners Customized

Product Details:

Brand Name:	Sintec Optronics
Model Number:	LSJC Series

Payment & Shipping Terms:

Delivery Time:	5-7days
Payment Terms:	T/T via bank

Contact Now

3D Laser Marking Heads / Dynamic Focusing Scanners Customized

Description

Highlight:

3D Laser Marking Head

Laser Marking Head

Dynamic Focusing Scanners

3D Laser Marking Heads / Dynamic Focusing Scanners

laser marking heads

Part number	Max entrance dia. mm	DC power supply, V	Dimension LxWxH,mm
LSJC-xxxx-3D7210	10	24
LSJC-xxxx-3D2207	12	24	262x110x110
LSJC-xxxx-3D8220	20	24
LSJC-xxxx-3D8230	30	24	556.3x176x158
LSJC-xxxx-3D8330	30	24

Part Number	LSJC-1064-10-3D7210-300	LSJC-355-10-3D7210-200	LSJC-xxxx-12-3D2207
Input Aperture	10mm	10mm	12mm
Mark field	300x300mm	200x200mm
Linearity	99.9%	99.9%	99.9%
Small step response time	0.3ms	0.3ms	0.45ms
Maximum Scan Angle	±15°	±15°	±15°
Resolution	12μrad	12μrad	12μrad
Repeatability	8μrad	8μrad	8μrad
Working Temperature	0-45℃	0-45℃	0-45℃
Storage Temperature	-10 to +60℃	-10 to +60℃	-10 to +60℃
Input Voltage	±24VDC	±24VDC	±24VDC
Interface Signal Digital	XY2-100	XY2-100	XY2-100
Dimension(L×W×H)			262x110x110

Part Number	LSJC-1064-20-3D8220-500	LSJC-10.6-30-3D8230-300	LSJC-10.6-30-3D8330-1200
Input Aperture	20mm	30mm	30mm
Mark field	500x500mm	300x300mm	1200x1200mm
Linearity	99.9%	99.9%	99.9%
Small step response time	0.8ms	1.2ms	1.2ms
Maximum Scan Angle	±15°	±15°	±15°
Resolution	12μrad	12μrad	12μrad
Repeatability	8μrad	8μrad	8μrad
Working Temperature	0-45℃	0-45℃	0-45℃
Storage Temperature	-10 to +60℃	-10 to +60℃	-10 to +60℃
Input Voltage	±24VDC	±15VDC	±15VDC
Interface Signal Digital	XY2-100	XY2-100	XY2-100
Dimension(L×W×H)		556.3x176x158
