532nm Green Solid State Lasers

532nm Green Solid State Lasers
532nm Green Solid State Lasers 532nm Green Solid State Lasers 532nm Green Solid State Lasers 532nm Green Solid State Lasers 532nm Green Solid State Lasers

Large Image :  532nm Green Solid State Lasers

Product Details:
Brand Name: Sintec Optronics
Model Number: STC Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T
Contact Now

532nm Green Solid State Lasers

Description
Highlight:

Solid State Lasers

,

Green Solid State Lasers

,

Lasers

532nm Green Solid State Lasers,DPSS Laser,Diode end-pumped Laser

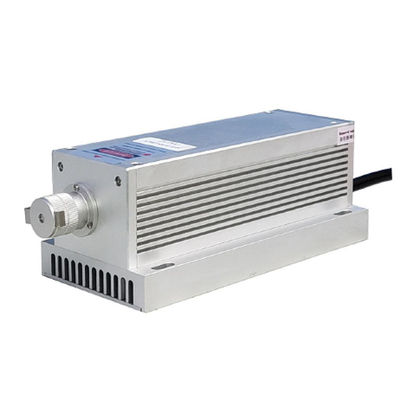

STC Series 532 nm Green Solid State Lasers

We offer the diverse of 532nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20W available. For Q-switched operating mode lasers, the high power laser series is up to 200W available, and high energy laser series is up to 450mJ available.

(1) High Stability Laser Perfect beam quality; Long-term stability<1%
(2) Low Noise Laser RMS noise<1.0% ( <0.5% optional); Linewidth <0.003nm optional
(3) Single Frequency Lasers (Single Longitudinal Mode) Ultra low noise<0.5%; Line width <0.00001nm
(4) Q-switched Laser ns laser (pulse width 1-100ns)
(5) Mode-locked & ps Laser Mode-locked laser (pulse width down to 10ps)
(6) Fiber Laser Modulation up to 80MHz; Pulse width down to 10ps
(7) Line Generated Laser Line uniformity<20%; Line straightness ±0.1%
(8) OEM Laser Module Ultra compact; Industrial integration

1. 532nm High Stability Laser Series

High stability 532 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

532nm Green Solid State Lasers 0

Applications:

  • Confocal microscopy

  • Laser medical treatment

  • Scientific experiment

  • Laser lighting show

  • Optical instrument

Model Operating mode Output power Power stability M² factor
STC-MGL-DS-532 CW 1~150mW <1% <1.2 ( <1.1 optional)
STC-MXL-SM-532 CW 1~200mW <1% /
STC-MGL-III-532 CW 1~300mW <1% <1.2 ( <1.1 optional)
STC-MGL-S-532 CW 1~300mW <1% <1.2 ( <1.1 optional)
STC-STC-MGL-FN-532 CW 400~1500mW <1% <1.2 ( <1.1 optional)
STC-STC-MGL-F-532 CW 1500~2500mW <1% <1.1
STC-MGL-N-532 CW 3~5W <1% <1.3
STC-MGL-R-532 CW 1~5W <1% <1.3
STC-OEM-N-532-Water CW 1~5W <1% <1.3
STC-MGL-W-532-HQ CW 1~10W <1% <1.2
STC-MGL-V-532 CW 5~15W <1% <1.2
STC-MGL-W-532 CW 5~20W <1% <1.5
STC-MGL-D-532 CW 20~30W <1% /
STC-HPL-532-CW CW 1~80W <3% /
STC-HPL-532-Q QCW 20~40W <3% /
STC-HPL-532-QM QCW 40~100W <3% /
STC-HPL-532-QL QCW 100-200W <3% /
STC-MGL-III-532-AOM High modulation up to 1 MHz 1~150mW <1% 1.5
STC-MGL-FN-532-AOM High modulation up to 1 MHz 150~400mW <1% <1.5
2. 532 nm Low Noise Laser Series

High performance CW, ultra low noise 532 nm lasers, narrow spectrum linewidth<0.003 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

532nm Green Solid State Lasers 1

Applications:

  • Fluorescence microscopy

  • DNA sequency, flow cytometry

  • Particle measurements

  • Spectrum analysis

  • Chip inspection

Model Output power (mW) Noise of amplitude
(rms, 20Hz-20MHz)		 M² factor Spectral line width (nm)
STC-MLL-III-532 1~300 <0.5% <1.2 ( <1.1 optional) <0.1
STC-MLL-S-532 1~300 <0.5% <1.2 ( <1.1 optional) <0.1
STC-MLL-U-532 1~400 <0.5% <1.2 <0.003
STC-MLL-FN-532 1~1000 <0.5% <1.2 ( <1.1 optional) <0.2 ( <0.003 optional)
STC-MLL-F-532 1500~2500 <1% <1.1 <0.1 ( <0.003@1.5W)
STC-MGL-R-532 1~5 W <1% <1.3 <0.003
STC-MLL-N-532 3~5 W <1% <1.3 <0.1 ( <0.01@3W)
STC-MLL-W-532 5~20 W <1% <3.0 <0.1 ( <0.01@5W)
STC-OEM-V-532-LN 5~30 W <1% <1.2 <0.1

3. 532nm Single Longitudinal Mode Laser Series

High performance CW, single longitudinal mode, ultra low noise 532 nm lasers, narrow spectrum linewidth<0.00001nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

532nm Green Solid State Lasers 2

Applications:

  • Confocal microscopy

  • RAMAN spectroscopy

  • Particle measurements

  • DNA sequency, Flow cytometry

  • Digital imaging, Analytical chemistry

Model Operating mode Output power (mW) Fiber coupling options AOM option
STC-MSL-III-532 CW 1~100 SM/ PM/ MM yes
STC-MSL-S-532 CW 1~100 SM/ PM/ MM yes
STC-MSL-DS-532 CW 1~100 SM/ PM/ MM yes
STC-MSL-U-532 CW 1~200 SM/ PM/ MM yes
STC-MSL-FN-532 CW 200~400 SM/ PM/ MM yes
STC-MSL-FN-532-S CW 200~400 SM/ PM/ MM yes
STC-MSL-F-532 CW 400~700 SM/ PM/ MM yes
STC-MSL-RA-532 CW 700~2000 MM /
STC-MSL-R-532 CW 2000~10000 MM /
STC-MSL-III-532-AOM High modulation up to 1MHz 1~30 SM/ PM/ MM /
STC-MSL-FN-532-AOM High modulation up to 1MHz 30~200 SM/ PM/ MM /
STC-MSL-AO-532 Q- switched 1~100uJ@1Hz~1kHz, 20ns MM /

4. 532nm Q-switched Laser Series

We offer diverse of Q-switched 532 nm lasers in passively and actively modes. With pulse width in short nanosecond, and single pulse energy up to 450mJ. Are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, and medical device manufacturing.

532nm Green Solid State Lasers 3

Applications:

  • Scientific Research

  • Life Science & Medical

  • Materials Processing

  • Microelectronics

  • OEM Integration

Model Single pulse energy Repetition rate Pulse width (ns) Operating mode (Q-switched)
STC-MPL-III-532 1-5 μJ 1-20 kHz ~5 (1.3 optional) Passively
STC-MPL-T-532 1-10 μJ 0.1-15 kHz ~0.5 Passively
STC-MPL-SU-532 5-40 μJ 1-15 kHz ~1.3/ ~4 Passively
STC-MPL-H-532 5-50 μJ 1-30 kHz ~5 (1.3 optional) Passively
STC-MPL-U-532 20-60 μJ 4-12 kHz ~4 (1.3 optional) Passively
STC-MPL-N-532 50-125 μJ 1 k-15 kHz ~5 Passively
STC-AO-N-532 1-60 μJ 1-50 kHz ~10<10 kHz Acousto-optic
STC-AO-S-532 1-100 μJ 0.1-50 kHz 5-10 @<10 kHz Acousto-optic
STC-AO-W-532 1-300 μJ 1-50 kHz ~10 @<10 kHz Acousto-optic
STC-AO-V-532 1-300 μJ 1-200 kHz <15 @25 kHz Acousto-optic
STC-AO-L-532 1-600 μJ 0.001-200 kHz ~6 @5 kHz Acousto-optic
STC-AO-X-532 1-670 μJ 30-100 kHz ~15 @30 kHz Acousto-optic
STC-AO-U-532 500 μJ-1 mJ 1-3 KHz <15 @3 kHz Acousto-optic
STC-EO-XS-532 1-125 μJ 1-100 kHz ~3.5 @40 kHz Electro-optic
STC-EO-S-532 1-70 μJ 1-1000 Hz ~6 Electro-optic
STC-EO-532-G 0.2-0.5 mJ 1 Hz-25 kHz <8 @5 kHz Electro-optic
STC-EO-532-H 0.5-1 mJ 1-10 kHz (fixed) <6 @5 kHz Electro-optic
STC-EO-532-N 0.5-2 mJ 1 Hz-25 kHz <6 @ <7 kHz Electro-optic
STC-DPS-532-Pico 2-10 W 0.1-10 MHz <50 ps Electro-optic
STC-DPS-532-H 1-10 mJ 1-1000 Hz <4 Electro-optic
STC-DPS-532-E 1.5-4 mJ 1-50 Hz <4 Electro-optic
STC-DPS-532-A 1-5 mJ 1-10 Hz <10 Electro-optic / Passively
STC-DPS-532-B 5-15 mJ 1-10 Hz <10 Electro-optic
STC-DPS-532-BS-D 15-50 mJ 1-20 Hz <10 Electro-optic
STC-DPS-532-Q 2-20 mJ @1-1000 Hz 1-1000 Hz ~10 Electro-optic
STC-DPS-532-J 1-20 mJ 1-20 Hz ~10 Electro-optic
STC-HPL-532-QT 1-13W 5-10 kHz ~150 @10 kHz Acousto-optic
STC-HPL-532-Q 2-4mJ @10kHz 10-20 kHz ~100 @10 kHz Acousto-optic
STC-HPL-532-QM 1-6mJ @15kHz 15 kHz ~100 @15 kHz Acousto-optic
STC-HPL-532-QL 7-13mJ@15kHz 15 kHz ~100 @15 kHz Acousto-optic
STC-HPL-532-QS 1-4.5mJ@10kHz 10 kHz ~5 Acousto-optic
STC-LPS-532-A 30-100 mJ 1-10 Hz ~10 Electro-optic
STC-LPS-532-S 30-150 mJ 1-20 Hz ~10 Electro-optic
STC-LPS-532-L 200-450 mJ 1-10 Hz ~10 Electro-optic

5. 532nm Mode-locked & Picosecond Laser Series

Superior beam quality, best reliability, mode-locked & picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

532nm Green Solid State Lasers 4

Applications:

Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument

Mode-locked Type:

  Wavelength
(nm)		 Output power
(mW)		 Pulse duration
(ps)		 Rep. rate
(MHz)		 Operating mode Transverse mode
STC-PS-R-532 532 1-3000 <20 48±1 Mode-locked TEM00
STC-PS-HR-532 532 1-2 W ~15@500kHz&2 W 100-1000kHz Mode-locked TEM00

Fiber Laser Type:

  Wavelength
(nm)		 Output power
(mW)		 Pulse duration
(ps)		 Rep. rate
(MHz)		 Operating mode Transverse mode
STC-FL-532-PS 532 1-150 <10 20-80 (Fixed) Mode-locked TEM00
STC-FL-532-Pico 532 1-1000 100-900 0.1-80 (variable) Pulsed TEM00

Diode Pumped Laser Type:

  Wavelength
(nm)		 Output power
(mW)		 Pulse duration
(ps)		 Rep. rate
(MHz)		 Operating mode Transverse mode
STC-DPS-532-Pico 532 2-10 W <50 ps 0.1-10 MHz Pulsed TEM00

6. 532nm Fiber Lasers

We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.

532nm Green Solid State Lasers 5

Model Wavelength (nm) Output power (mW) Pulse width Modulation rate Longitudinal mode Polarization
STC-FL-532-PS 532 1-150 <10 ps 20-60 MHz Multi- >15dB
STC-FL-532-Pico 532 1-1000 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-532-Nano 532 1-1000 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-532-AO 532 10-100 nJ 0.5-50 ns 1-1000 Hz Multi- Random/ >15dB

7. 532nm OEM Laser Modules

Green laser module at 532 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.

High Power OEM Laser 532nm Green Solid State Lasers 6

  1. STC-OEM-S-532/ 1~300mW

  2. STC-OEM-U-532/ 300~1500mW

  3. STC-OEM-N-532/ 2000~5000mW

  4. STC-OEM-N-532-Water/ 1~5W Water cooled

  5. STC-OEM-W-532/ 5~18W

  6. STC-OEM-W-532-Water/ 5~10W Water cooled

  7. STC-OEM-I-532/ 5W Ultra compact

  8. STC-OEM-SW-532/ 10W Low heat

  9. STC-OEM-V-532/ 5~15W Water cooled

  10. STC-OEM-D-532/ 20-30W

  11. STC-OEM-D-532-Water/ 20-30W Water cooled
Compact Laser Module 532nm Green Solid State Lasers 7

  1. STC-PGL-I-R-532/ 1~50mW

  2. STC-S-GDL-532/ 1~80mW

  3. STC-PGL-VI-532/ 1~80mW

  4. STC-PGL-H-532/ 1~500mW

  5. STC-PGL-H1-532/1~800mW Beam divergence < 1.5 mrad
532nm Green Solid State Lasers 8

  1. STC-PGL-XII-E-532/ 1~50mW

  2. STC-PGL-FS-532/ 1~50mW

  3. STC-PGL-V-H-532/ 1~300mW
Fiber Coupled Laser Module 532nm Green Solid State Lasers 9 STC-PGL-FC-532/ 1~50mW
