High Energy EO Q-switched Nd: YAG Lasers and Low-medium Power 1064nm ns Lasers

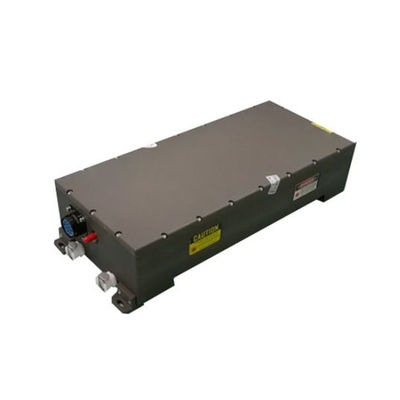

1.STHE Series High Energy EO Q-switched Nd: YAG Lasers

The lamp pumped Q-switched laser is a high energy laser with high stability, high conversion efficiency and high quality laser beam. With compact structure, easy installation and convenience to move, there are many options such as double pulse or more impulsive intervals and pulse output range. The system is equipped with adjustable control box and computer interface hand size limit, suitable for space and requirements and other equipment outside applications.

Features:

• Super gauss beam output

• Maximum output power can reach 100 joules

• Industrial design, good reliability and no adjustment

• Manual control box control, also can use computer operation

Typical Applications:

• Laser rangefinder

• Laser radar

• Laser remote sensing

• Strong Field of physics

• Pump OPO lasers, fast, dye laser pump, Raman lasers

• Laser fluorescence inspire

• Plasma measurement

• Optoelectronic detection

• Optoelectronic countermeasures

Specifications:

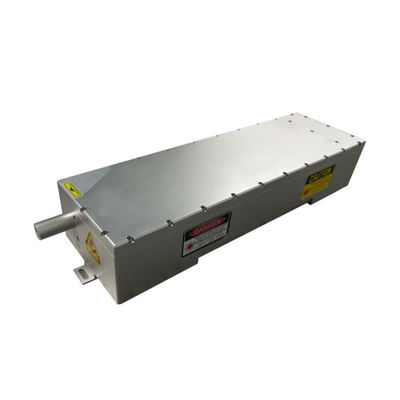

2.STHE Series 532nm EO Q-switched Lasers

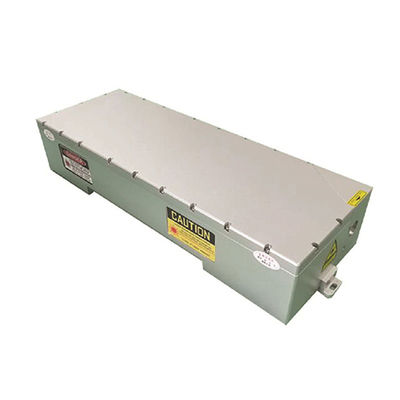

3.Low-medium Power 1064nm ns Lasers

Our compact lamp-pumped EO Q-switched nano-second laser is a low-medium energy pulsed solid-state laser. It has the features of small size, easy operation, stability. It also has a good reliability due to modular design. Thus these lasers are widely used in LIBS measurement, OPO pumping, laser cleaning etc.

Features:

• Compact in size for easy integration

• Sealing in water and air

• All-in-one design

• Red pilot available upon request

• TEM00/VRM beam mode output

• Controllable via mobile phone or computer

Typical Applications:

• LIBS measurement

• Laser radar

• Laser cleaning

• Pump OPO lasers, fast, dye laser pump, Raman lasers

• Plasma measurement

• Laser communications

Specifications:

• Part number: STHE-P-200

• Laser wavelength: 1064nm

• Pulse energy: >=200mJ@1064nm

• Energy stability: <=2%

• Pulse repetition rate: 1Hz

• Pulse width: <=15ns

• Beam diameter: 6mm~10mm

• Beam divergence: £1mrad

• Pumping: flashlamp pumping

• Warm up time: <10min

• Store temp: -15-45℃

• Environment humility: 20%-70%

• Power input: 230VAC, 50Hz, single phase

• Laser head dimension: 375x115x89 mm (LxWxH)

• Laser head weight: 7.2kg

• Power supply weight: 42kg
