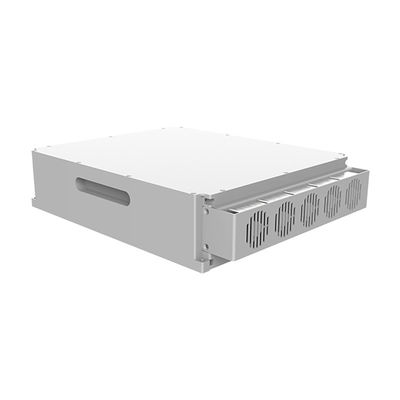

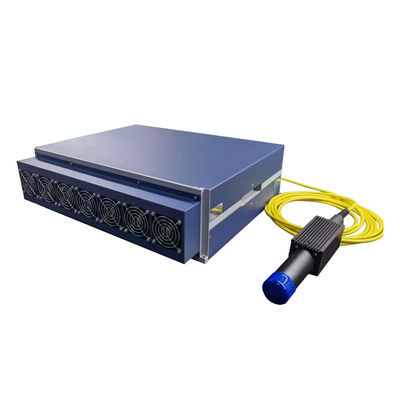

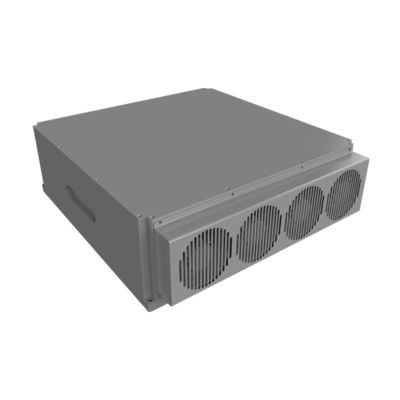

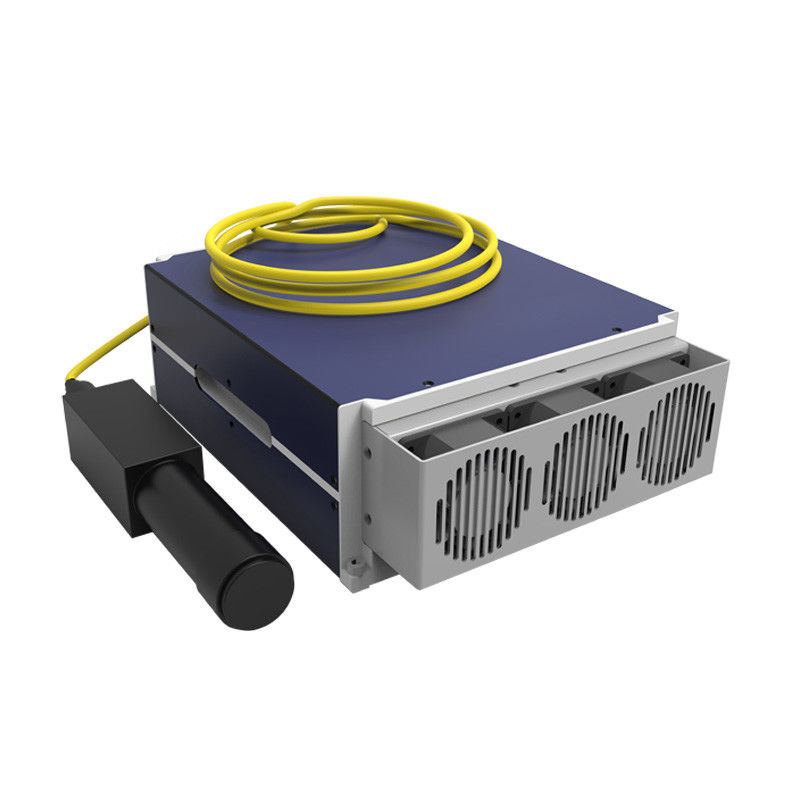

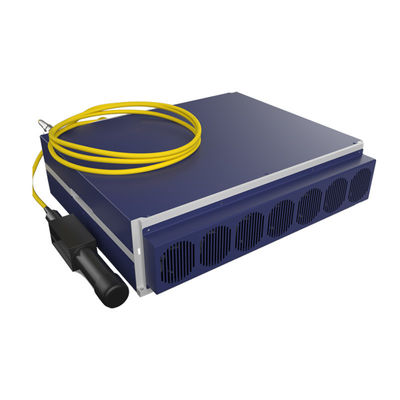

Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW

I'm Online Chat Now

Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW

Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW
Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW

Large Image :  Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW

Product Details:
Brand Name: Sintec Optronics
Model Number: STR Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank

Multi Module Continuous MOPA Fiber Lasers High Peak Power 15kW

Description
Highlight:

MOPA Fiber Lasers

,

Fiber Lasers

,

Lasers

MOPA Fiber Lasers,Multi-module Continuous Fiber Lasers,High Peak Power



MOPA Pulsed Fiber Lasers

The MOPA pulsed fiber lasers have the features such as high average power (20-200W), high peak power (15kW), tunable pulse widths from 2ns to 500ns and as high pulse repetition rate as 2000kHz. These lasers are ideal for applications such as solar , film cutting, thin material cutting, high resolution marking etc.

Technical specifications:

Model STR-P20MB STR-P60M STR-P100M
Central Emission wavelength (nm) 1064 1064 1064
Polarization Random Random Random
Nominal average output power (W) 20 60 100
Maximum Pulse energy (mJ) 0.5 1.0 1.0
Pulse repetition rate (kHz) 10-1000 20-1000 20-1000
Pulse width (ns) 2-350 10-350 10-350
Typical beam quality (M2) <1.3 <1.6 <1.6
Collimated beam diameter (mm) 6-8 6-8 5.5-7.5
Output power tunability (%) 10-100 10-100 10-100
Long term power stability (8hrs) <3% <3% <5%
Length of beam delivery fiber (m) 2.0 2.0 2.0
Operating voltage 24VDC 24VDC 220VAC
Typical power consumption (W) 150 350 450
Cooling Air Air Air
Operating temperature (oC) 0-40 0-40 0-40
Dimension WxDxH (mm) 286x215x95 340x260x120 396x360x123
